Valves with actuator

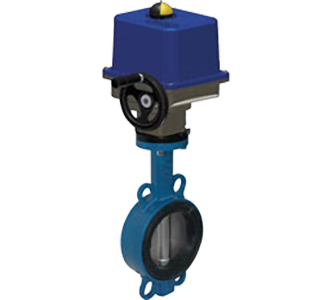

Artemis - Artemis 40 with electric actuator
STANDARD VALVE FEATURES:
For general features and special executions, refer to data on the manual valve.
For further information on the actuator technical features refer to the specific data sheet for actuator at the end of this catalogue.
E00-EL-EH= page 434/435 • ER-EQ= page 436/437
E00-EL-EH ACTUATOR FEATURES:
• ROTATION ANGLE:
90°.
• TEMPERATURE LIMITS:
-20°C / +70°C.
• SUPPLY VOLTAGE:
24 - 240V.*
• PROTECTION DEGREE:
IP67.
• STATIC TORQUE SUPPLIED:
20 N/m - 350 N/m.
• ROTATION TIME:
10 s. - 60 s.
EQ ACTUATOR FEATURES:
• ROTATION ANGLE:
90°.
• TEMPERATURE LIMITS:
-20°C / +80°C.
• SUPPLY VOLTAGE:
24 VAC, 230 VAC, 400 V3N.
• PROTECTION DEGREE:
IP67.
• STATIC TORQUE SUPPLIED:
25 N/m - 1000 N/m.
• ROTATION TIME:
from 22 to 93 s.
