Ball valves for gas

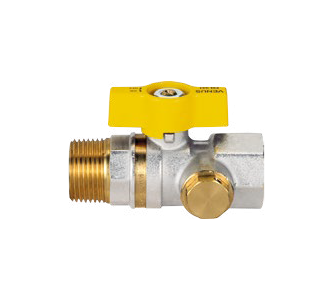

Venus test gas

Application fields:
The VENUS series is particularly recommended in gas test installations (families 1°, 2°, 3° EN 437).
Art. 1031G...L and 1031G...XGL are equipped with locking key system wich allows to lock the valve only in closed position.

• The collar end is flat

Threaded end connections:
• Standard female according to UNI ISO 7/1 (UNI ISO 10226).

Operation devices:
Yellow aluminium T-handle / yellow lockable aluminium T-Handle with key

All the valves comply with the regulation 2014/68/CE and are tested 100% on pneumatic seal with electronic control.

Temperature limits
from –20°C to +60°C
Pressure limits
MOP5

• The VENUS TEST GAS valve is provided with a 1/4” connection that allows insertion of a probe for pressure measurement.
• The VENUS series complies to the norms:
UNI 7129: GAS facilities realization and modification;
UNI 11137-1: dispersions measuring of the domestic GAS facilities;
UNI TS 11147:2005: domestic GAS facilities, which has provided by providing network, fixed GPL bottles and tanks, which has been realized by pressed fittings.
This Norm requests, that a socket for checking of the pressure is equipped after the counter

• The VENUS series complies to the regulation (UE) 305/2011 CPR (Building Material)

Bore:
reduced.

Stem:
anti blow out.

Seats:
high resistance virgin PTFE.

Upper seal:
3 seals

1 PTFE ring - high pressure
2 O-Ring - low pressure.


Temperature limits:
for gas from –20°C to +60°C

Pressure limits:
for gas MOP
